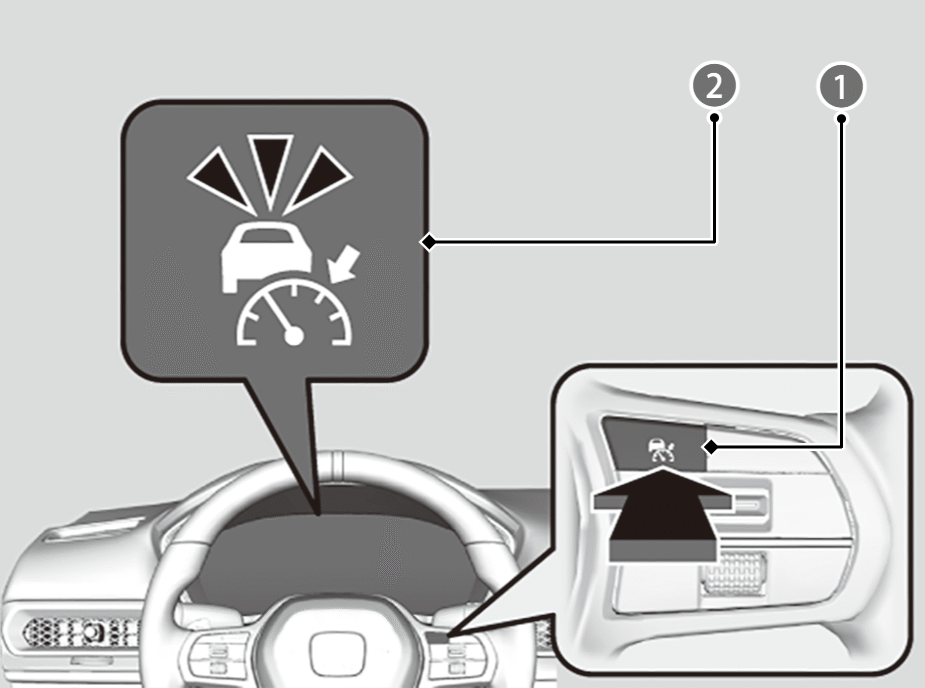

How to Activate The System

  1. Press thebutton () while the shift position is in D.
    1. Theindicator (white) () comes on.

  • Indicator (Green, White/Green)

  • On when ACC with Low Speed Follow begins

  • Set Vehicle Speed (White)

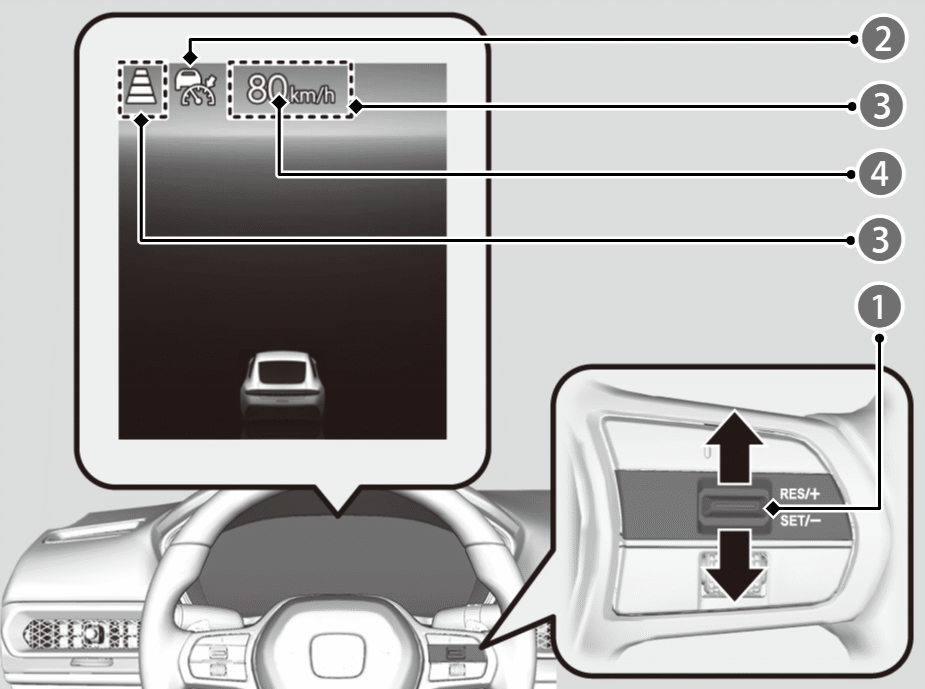

  1. Press the RES/+/SET/− switch () up or down.
    1. The system will start operating at the set speed.
    2. The icons and set speed will be displayed on the gauge.
  1. ACC with Low Speed Follow does not operate while the brake pedal is depressed.
  2. When driving at 30 km/h (18 mph) or less, the vehicle speed is set to 30 km/h (18 mph). If your vehicle is stationary, you can set the vehicle speed even with the brake pedal depressed.
  3. When you use ACC with Low Speed Follow, Straight Driving Assist (a feature of the Electric Power Steering system) is activated. By enabling the steering system to automatically compensate for natural steering pull, Straight Driving Assist makes it easier for you to keep your vehicle in a straight line.
  4. When not using ACC with Low Speed Follow, press thebutton to turn off the system.

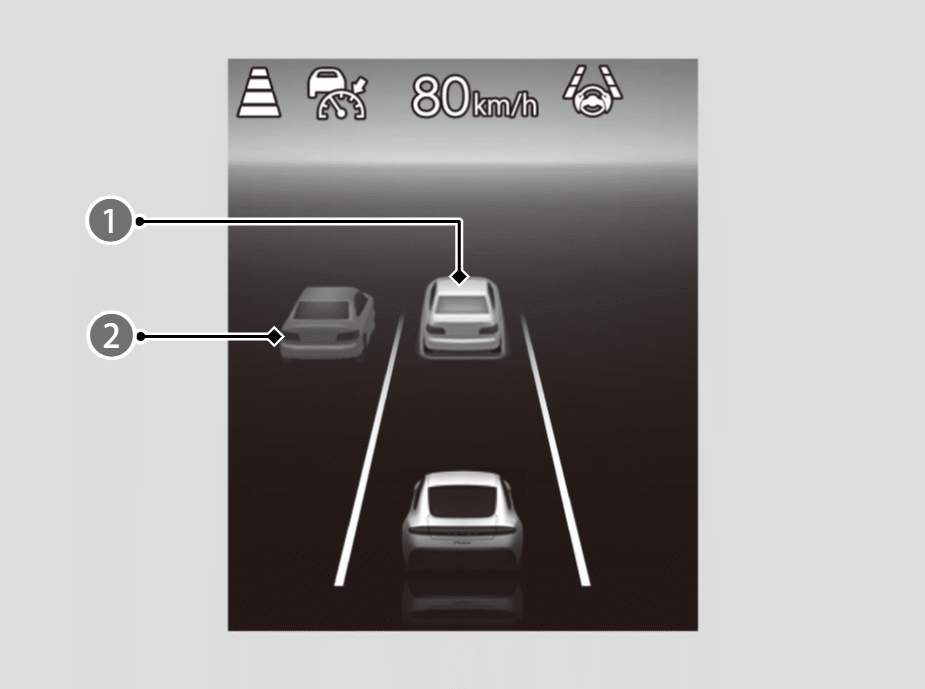

  • Control target vehicle

  • Outside of control target vehicle

If a vehicle ahead enters the detectable range, icon () appears, and the system adjusts your vehicle’s speed within the set range in order to keep the vehicle’s set following-interval.

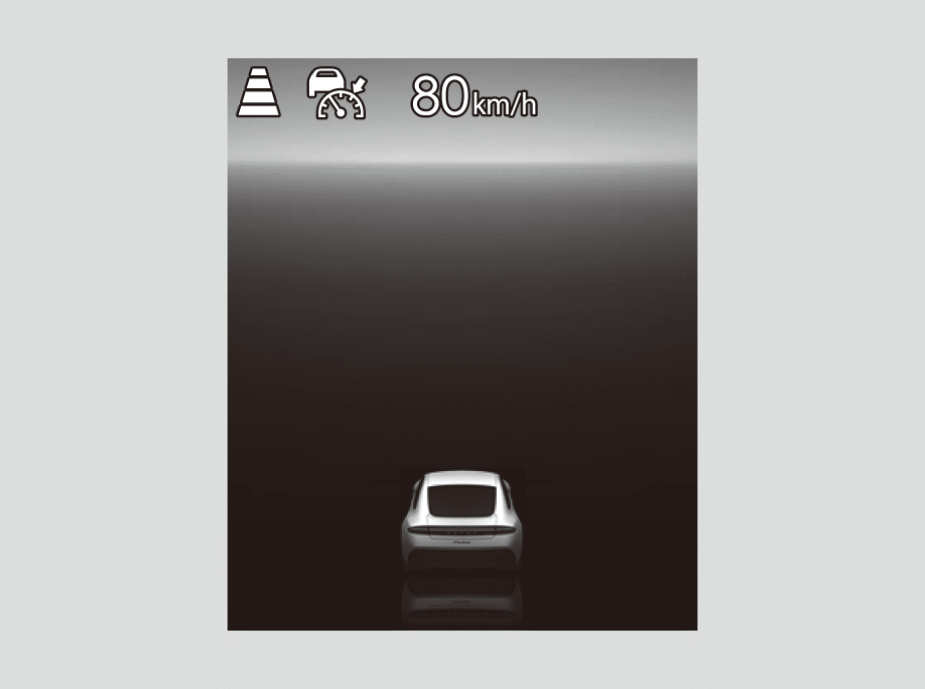

If there is no vehicle ahead, your vehicle maintains the set speed.

If a vehicle ahead leaves due to actions such as changing lanes, the system will slowly accelerate to the set speed and then maintain it.

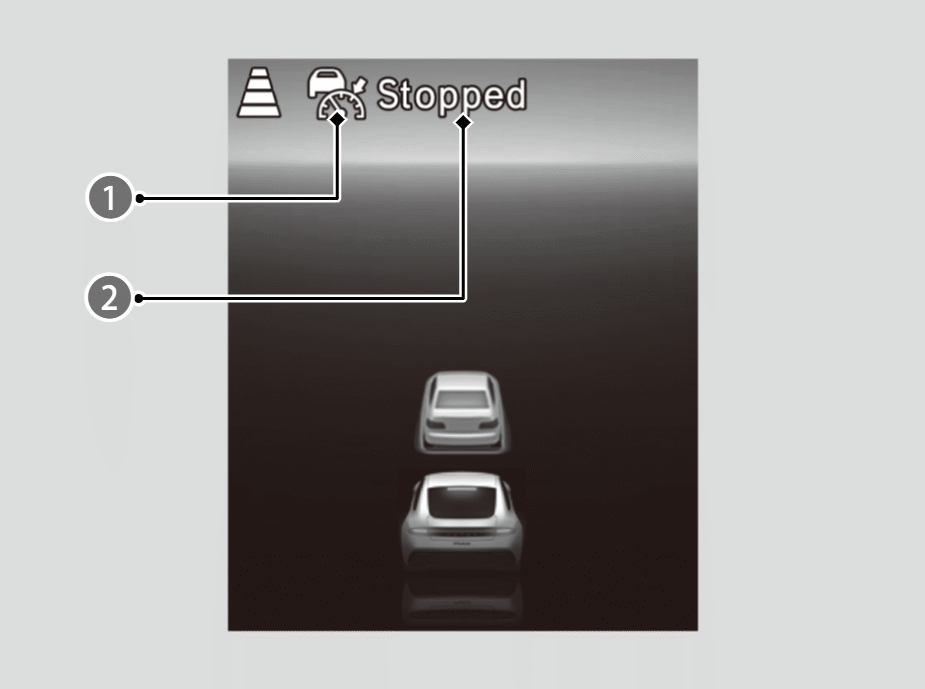

  • Indicator (Green)

Your vehicle also stops automatically. The message () appears on the gauge.

When the vehicle ahead of you starts again, if you press the RES/+/SET/− switch up or down, or depress the accelerator pedal, ACC with Low Speed Follow will operate again within the previously set speed.

  1. When your vehicle stops automatically because a vehicle detected ahead of you has stopped, the interval between the two vehicles will vary based on the interval setting.

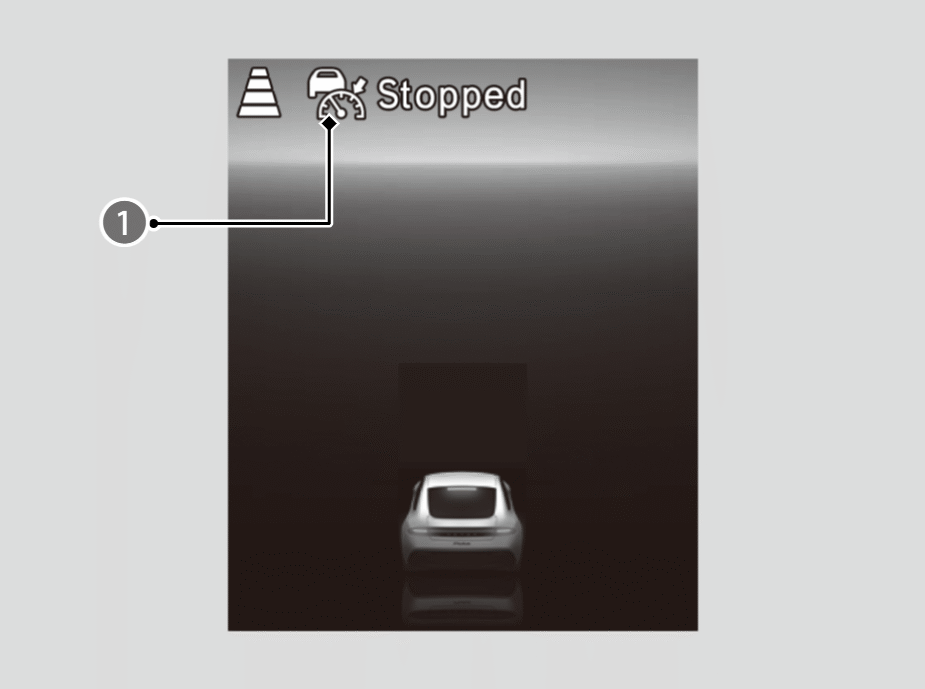

  • Indicator (White/Green)

If no vehicle is ahead of you before you resume driving, depress the accelerator pedal and ACC with Low Speed Follow will operate again within the prior set speed.

  1. When a vehicle whose speed is slower than your set speed comes in or cuts in front of you and is detected by the camera, your vehicle starts to slow down.
  2. Even if the interval between your vehicle and the vehicle detected ahead is short, ACC with Low Speed Follow may start accelerating your vehicle under the following circumstances:
    1. The vehicle ahead of you is going at almost the same speed as, or faster than, your vehicle.
    2. A vehicle that cuts in front of you is going faster than your vehicle, gradually increasing the interval between the vehicles.
  3. When the vehicle ahead of you moves away, such as when entering an interchange or rest area, ACC with Low Speed Follow may continue to maintain the set following-interval for a short time.
  4. When ACC with Low Speed Follow slows your vehicle by applying the brakes, your vehicle’s brake lights will illuminate.
  5. While driving down steep hills, ACC with Low Speed Follow brakes to inhibit excessive acceleration for maintaining the set speed. However, the vehicle speed may become faster than the set speed.
  6. ACC with Low Speed Follow may temporarily control the interval between your vehicle and the vehicle in adjacent lane or surroundings of your vehicle depending on the road conditions (e.g., curves) or vehicle conditions (e.g., operating the steering wheel or the vehicle location in the lane).
  7. While ACC with Low Speed Follow is in operation, if the deceleration paddle selector is used or the Honda S+ Shift is turned ON, then ACC with Low Speed Follow will be cancelled.

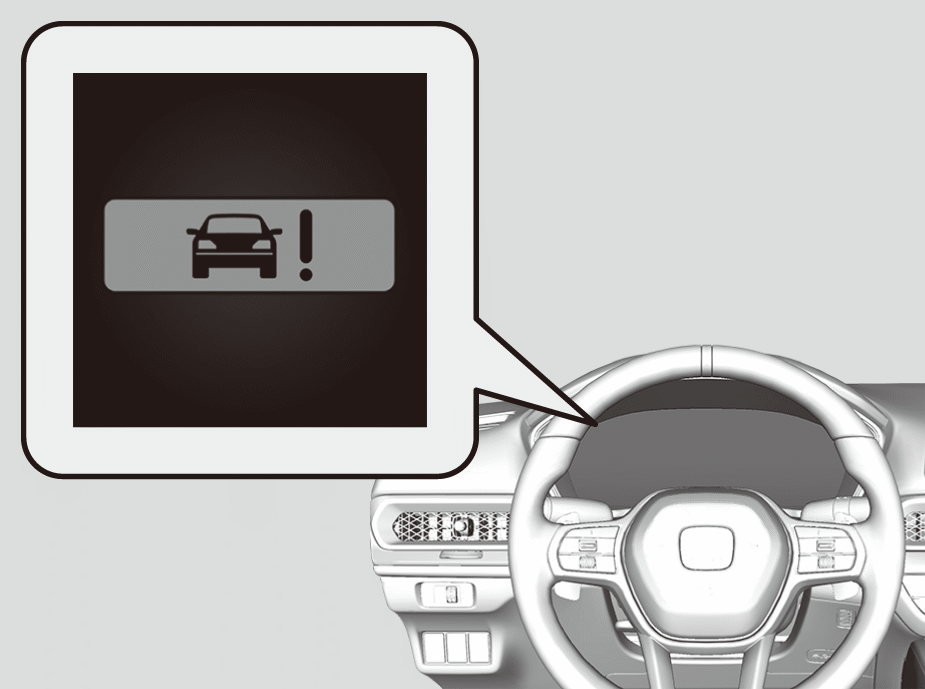

If the vehicle ahead of you slows down abruptly, or if another vehicle cuts in front of you, the system provides visual and audible alerts of a possible collision.

  1. Depress the brake pedal, and keep an appropriate interval from the vehicle ahead.
  1. You can temporarily increase the vehicle speed. In this case, there is no audible or visual alert even if a vehicle is in the ACC with Low Speed Follow range.
    ACC with Low Speed Follow stays on unless you cancel it. Once you release the accelerator pedal, the system resumes an appropriate speed for keeping the following-interval while a vehicle ahead is within the ACC with Low Speed Follow range.

You can also set the system to beep when a vehicle detected in front of you comes in and goes out of the ACC with Low Speed Follow detecting range.

Customized Features

You can switch the displayed set speed measurements between km/h and mph.

Speed/distance units

Customized Features

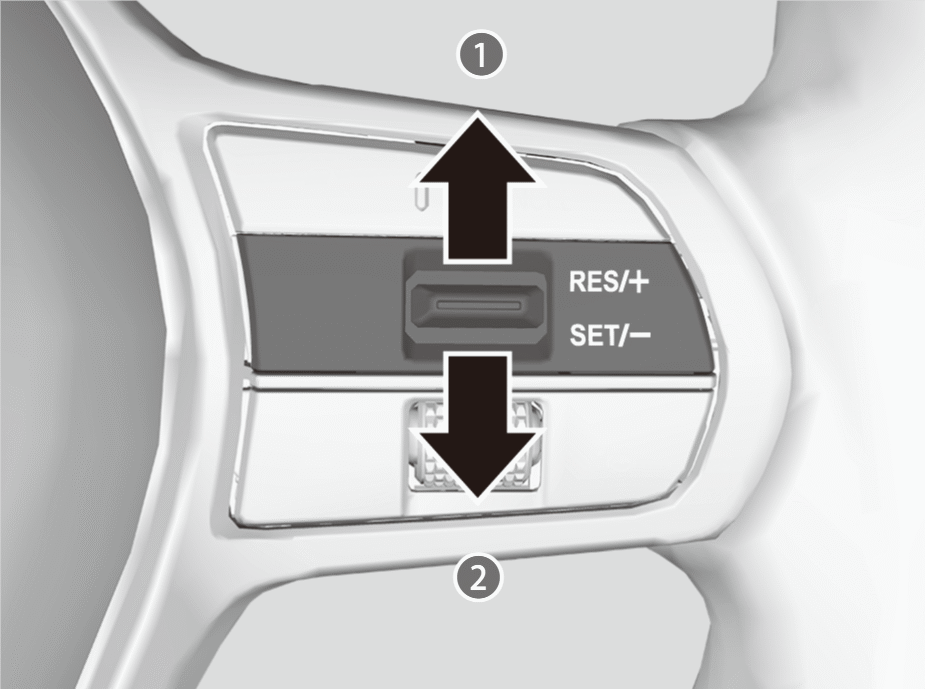

To Adjust the Vehicle Speed

  • Pressing the RES/+/SET/− switch up

    1. Each press increases speed by about 1 km/h or 1 mph.
    2. Press and hold to increase speed by about 10 km/h or 10 mph.

  • Pressing the RES/+/SET/− switch down

    1. Each press decreases speed by about 1 km/h or 1 mph.
    2. Press and hold to decrease speed by about 10 km/h or 10 mph.
  1. If a vehicle detected ahead is going at a speed slower than your increased set speed, ACC with Low Speed Follow may not accelerate your vehicle. This is to maintain the set interval between your vehicle and the vehicle ahead.
  2. When you depress the accelerator pedal and then press down and release the RES/+/SET/− switch, the current speed of the vehicle is set.

To Set or Change Following-interval

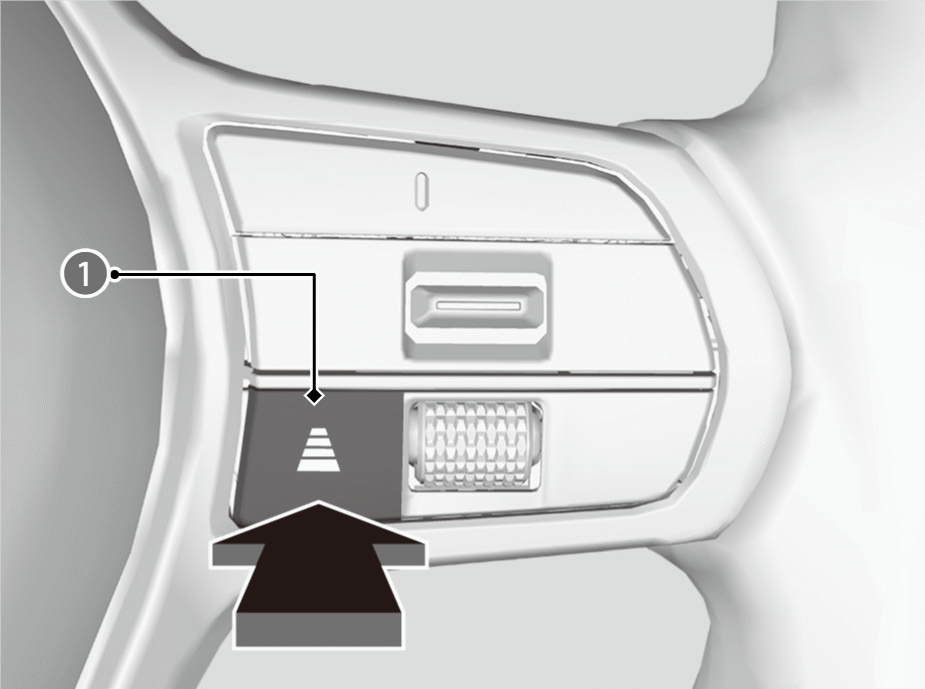

Press thebutton () to change the ACC with Low Speed Follow following-interval.

  1. Each time you press the button, the following-interval (the interval behind a vehicle detected ahead of you) setting cycles through extra long, long, middle, and short following-intervals.
  2. Determine the most appropriate following-interval setting based on your specific driving conditions. Be sure to adhere to any following-interval requirements set by local regulation.
  3. The higher your vehicle’s following-speed is, the longer the short, middle, long, or extra long following-interval becomes.

  • Adaptive Cruise Control (ACC) with Low Speed Follow Interval Indicator

The distance between vehicles is:

  1. About 27 m (87 feet), 1.2 sec (vehicle speed is 80 km/h [50 mph])
  2. About 33 m (107 feet), 1.2 sec (vehicle speed is 100 km/h [62 mph])

The distance between vehicles is:

  1. About 35 m (113 feet), 1.6 sec (vehicle speed is 80 km/h [50 mph])
  2. About 43 m (142 feet), 1.6 sec (vehicle speed is 100 km/h [62 mph])

The distance between vehicles is:

  1. About 44 m (144 feet), 2.0 sec (vehicle speed is 80 km/h [50 mph])
  2. About 55 m (180 feet), 2.0 sec (vehicle speed is 100 km/h [62 mph])

The distance between vehicles is:

  1. About 54 m (176 feet), 2.4 sec (vehicle speed is 80 km/h [50 mph])
  2. About 67 m (221 feet), 2.4 sec (vehicle speed is 100 km/h [62 mph])

The driver must in all circumstances preserve a sufficient braking interval from the vehicle which precedes it and be aware that minimum intervals or times of spacing can be provided by the provisions of the Motorway Code locally applicable and that it is the driver’s responsibility to respect those laws.

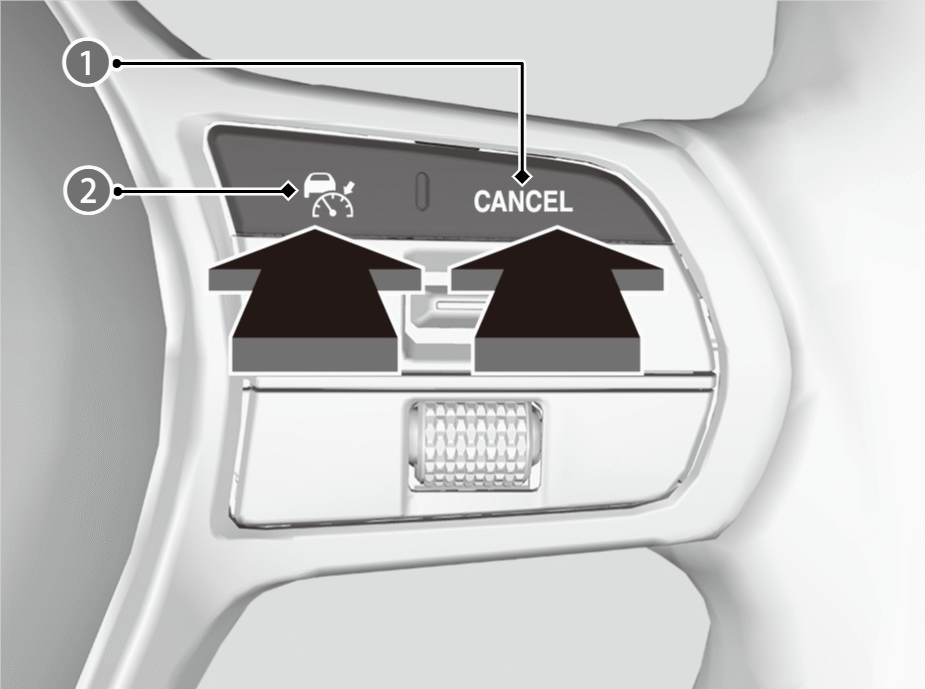

To Cancel

Any of the following operations will cause the ACC with Low Speed Follow to be cancelled.

  1. Press the CANCEL button () or depress the brake pedal.
    1. Theindicator changes green or white/green to white.
  2. Press thebutton ().
    1. indicator goes off.

Resuming the prior set speed

  • Indicator (White)

When you turn off ACC with Low Speed Follow by pressing the CANCEL button or depressing the brake pedal, the prior set speed () is displayed on the gauge in grey.



You can activate ACC with Low Speed Follow with the prior set speed displayed on the gauge (in grey) by pressing the RES/+/SET/− switch up.
