Sonar Sensors

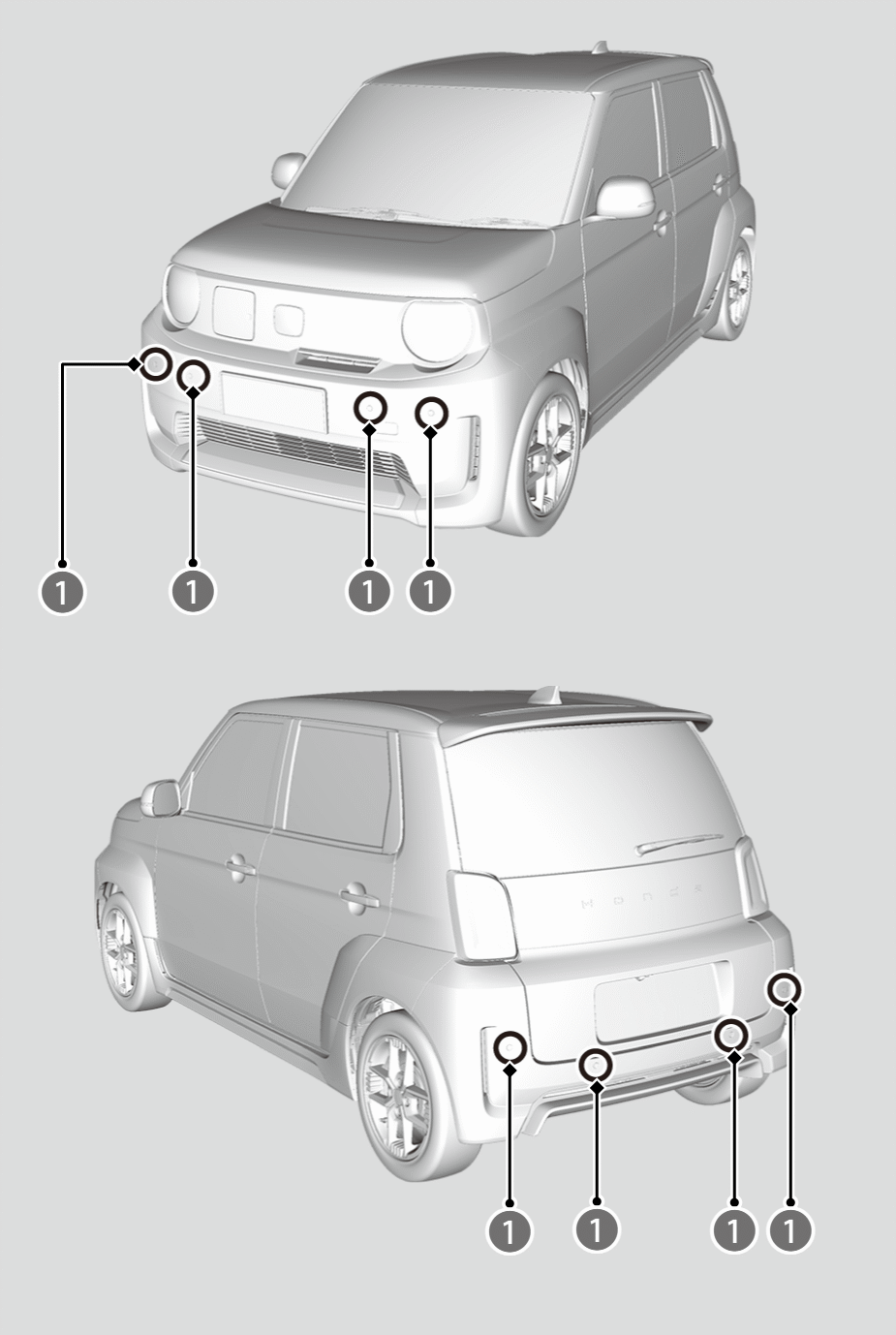

The sonar sensors () are situated in the front bumper, and rear bumper.

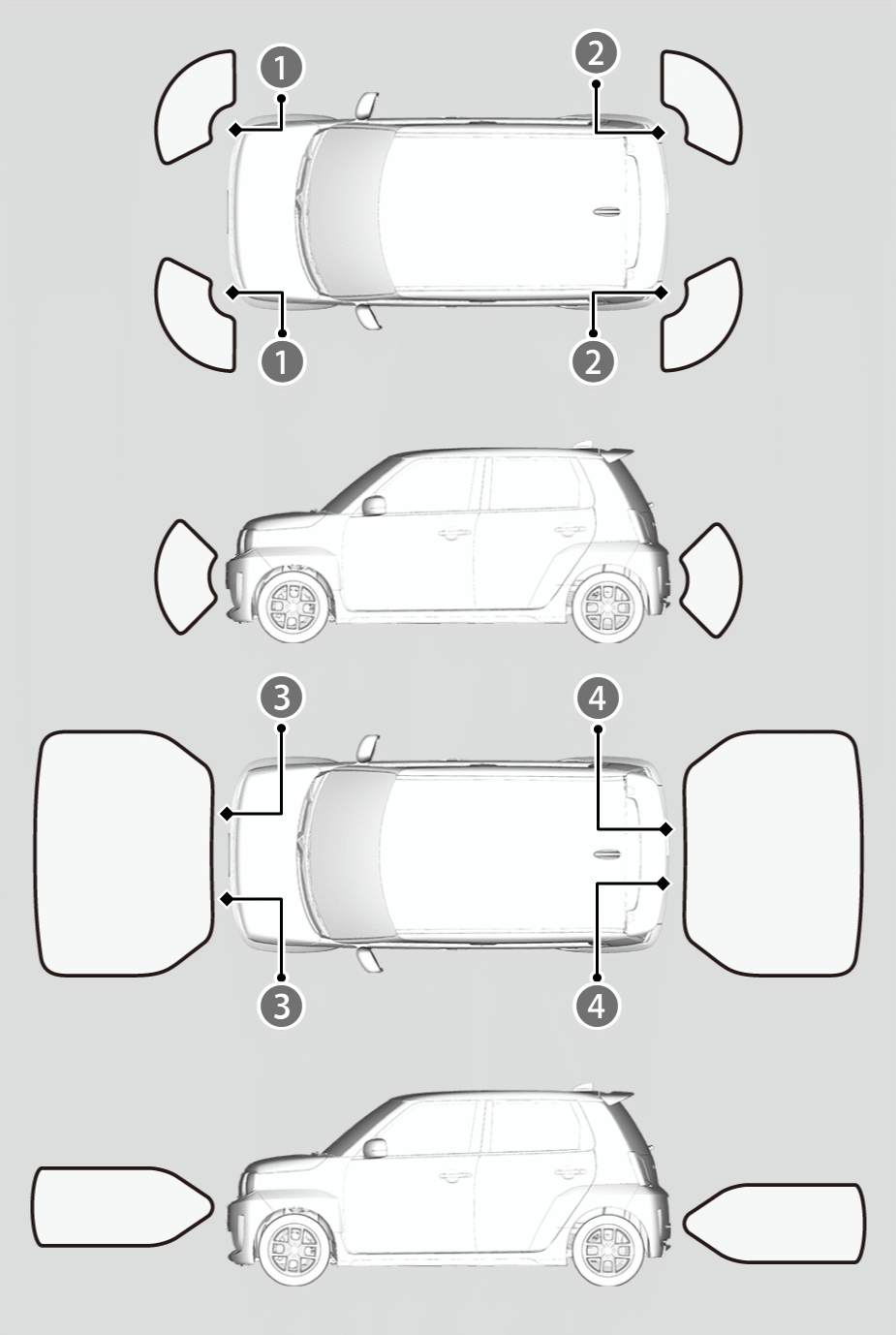

Detection Range

  • Front Corner Sensors

  • Rear Corner Sensors

  • Front Centre Sensors

  • Rear Centre Sensors

Handling of the Sonar Sensors

For the sonar sensors to work properly, do not:

  1. Hit the area around the sensors.
  2. Place stickers or other objects on or around the sensors.
  3. Attempt to take apart any sensor.
  4. Put any accessories on or around the sensors.



If the Low speed braking control problem. Parking sensor obstructed. message appears:

  1. Park your vehicle in a safe place, and make sure the sonar sensors or around the sensors is clean.

If the message does not disappear after the vehicle has been driven for a while, have your vehicle checked by a dealer.

If the vehicle is involved in any of the following situations, the sonar sensors may not work properly. Have your vehicle checked by a dealer:
  1. A sensor has been subjected to shock.
  2. Work needs to be done to the area around a sensor.
  3. The front or rear bumper has made contact with a hill, parking block, curb, embankment, etc.
  4. The vehicle has been involved in frontal or rear collision.
  5. The vehicle has been driven through a deep puddle.
