Device for Operating Each Function and Gauge Content

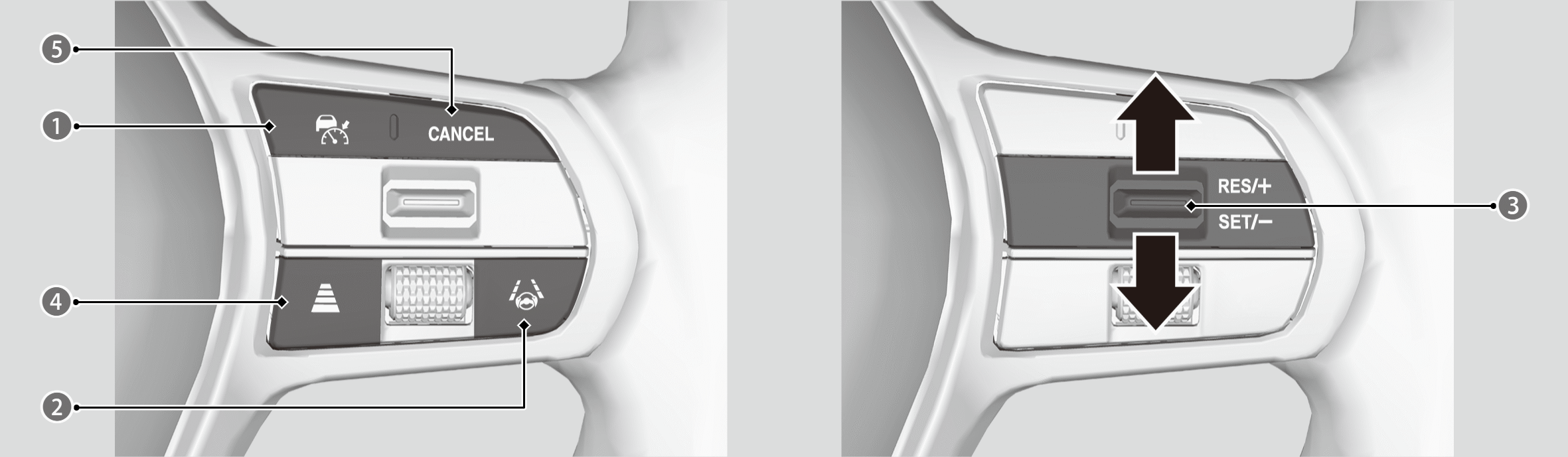

Operating Device

  • ACC with Low Speed Follow Button

Press to activate standby mode for ACC with Low Speed Follow. Or, press to cancel the system.

  • LKAS Button

Press to activate standby mode for LKAS and Traffic Jam Assist. Or, press to cancel these systems.

  • RES/+/SET/− Switch

Press the RES/+/SET/− switch up to set or resume the ACC with Low Speed Follow or increase the vehicle speed.

Press the RES/+/SET/− switch down to set the ACC with Low Speed Follow or decrease the vehicle speed.

  • Interval Button

Press to change the ACC with Low Speed Follow following-interval.

  • CANCEL Button

Press to cancel ACC with Low Speed Follow.

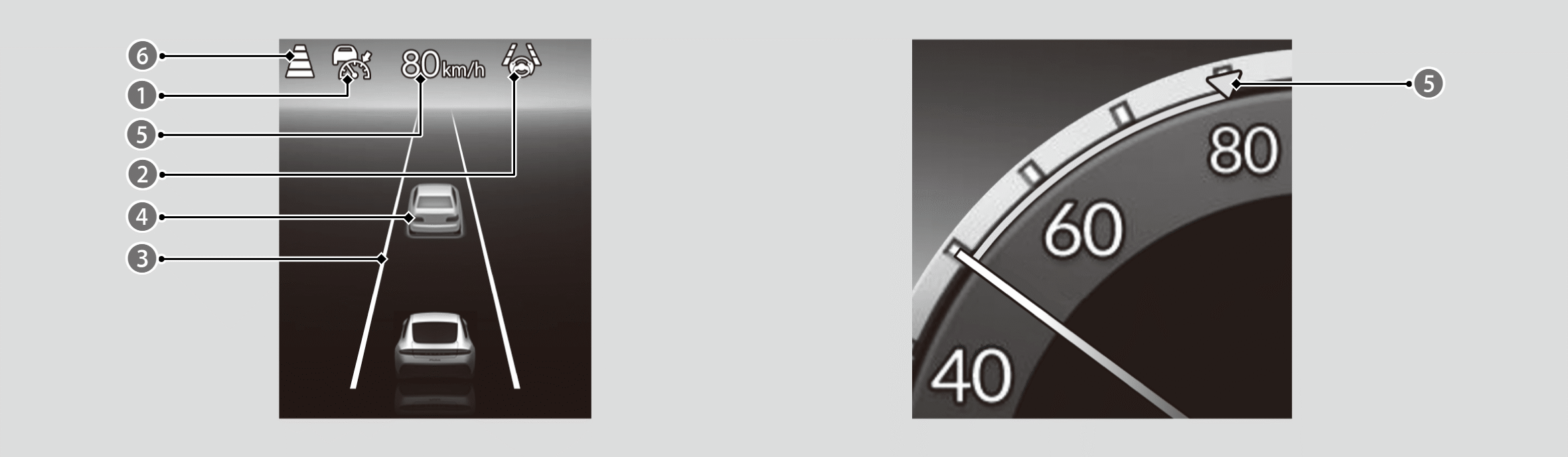

Gauge Content

You can see the current state of each function.

  • Indicates that ACC with Low Speed Follow is ready to be activated.

  1. Green, White/Green: The system is on.
    1. White/Green indicates that a vehicle is not detected ahead.
  2. White: The system is standby.
  3. Amber: There is a problem with the system.

  • Indicates that LKAS or Traffic Jam Assist is ready to be activated.

  1. Green: The system is operating.
  2. White: The system is standby.
  3. Amber: There is a problem with the system.

  • Indicates that LKAS or Traffic Jam Assist is activated and whether or not traffic lane lines are detected.

  1. Green Lines: The system is operating.
  2. White Lines: Traffic lane lines are detected.
  3. Amber Line: Lane departure is detected.

  • Indicates whether or not a vehicle is detected ahead.

  1. Control target vehicle: White and outlined in green.
  2. Outside of control target vehicle: Grey.

  • Indicates that ACC with Low Speed Follow shows the set vehicle speed.

  • Indicates that ACC with Low Speed Follow shows the set vehicle interval.
